Mounting systems


Standard Aluminum profiles
Fastening systems for ventilated facades:

Standard aluminium profiles are used to fix the panels. Depending on the fixing method and panel layout different types of profiles are used.

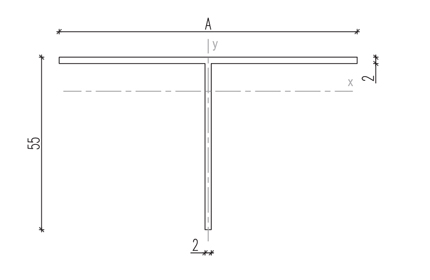

ARTRYS T PROFILE - ATP A/55/2

NAME OF PROFILEA [mm]
ARTRYS T - PROFILE ATP 135/55/2135
ARTRYS T - PROFILE ATP 105/55/2105
ARTRYS T - PROFILE ATP 95/55/295
ARTRYS T - PROFILE ATP 75/55/275
Material:
Aluminum EN AW 6060 T6
DATA FOR PROFILE ATP 135/55/2
Jx = 41,01 cm4 Jy = 8,25 cm4
Wx = 1,78 cm³ Wy = 6,08 cm³
A = 3,76 cm²Weight = 1,02 kg/m
DATA FOR PROFILE ATP 105/55/2
Jx = 19,30 cm4 Jy = 7,82 cm4
Wx = 1,75 cm³ Wy = 3,68 cm³
A = 3,16 cm²Weight = 0,86 kg/m
DATA FOR PROFILE ATP 95/55/2
Jx = 14,29 cm4 Jy = 7,63 cm4
Wx = 1,73 cm³ Wy = 3,01 cm³
A = 2,96 cm²Weight = 0,80 kg/m
DATA FOR PROFILE ATP 75/55/2
Jx = 7,18 cm4/ Jy = 7,03 cm4/
Wx = 1,69 cm³ Wy = 1,88 cm³
A = 2,56 cm²Weight = 0,70 kg/m

ARTRYS L PROFILE - ALP A/B/2

NAME OF PROFILEA [mm]B [mm]
ARTRYS L - PROFILE ALP 45/55/24555
ARTRYS L - PROFILE ALP 45/20/24520
Material:
Aluminum EN AW 6060 T6
DATA FOR PROFILE ALP 45/55/2
Jx = 6,17 cm4 Jy = 3,77 cm4
Jx1 = 8,09 cm4 Jy1 = 1,85 cm4
Wx = 1,58 cm³ Wy = 1,10 cm³
Wx1 = 2,10 cm³ Wy1 = 1,04 cm³
A = 1,96 cm²Weight = 0,53 kg/m
DATA FOR PROFILE ALP 45/20/2
Jx = 0,36 cm4 Jy = 2,71 cm4
Jx1 = 2,83 cm4 Jy1 = 0,23 cm4
Wx = 0,22 cm³ Wy = 0,95 cm³
Wx1 = 0,98 cm³ Wy1 = 0,19 cm³
A = 1,26 cm²Weight = 0,34 kg/m
