SZ systems

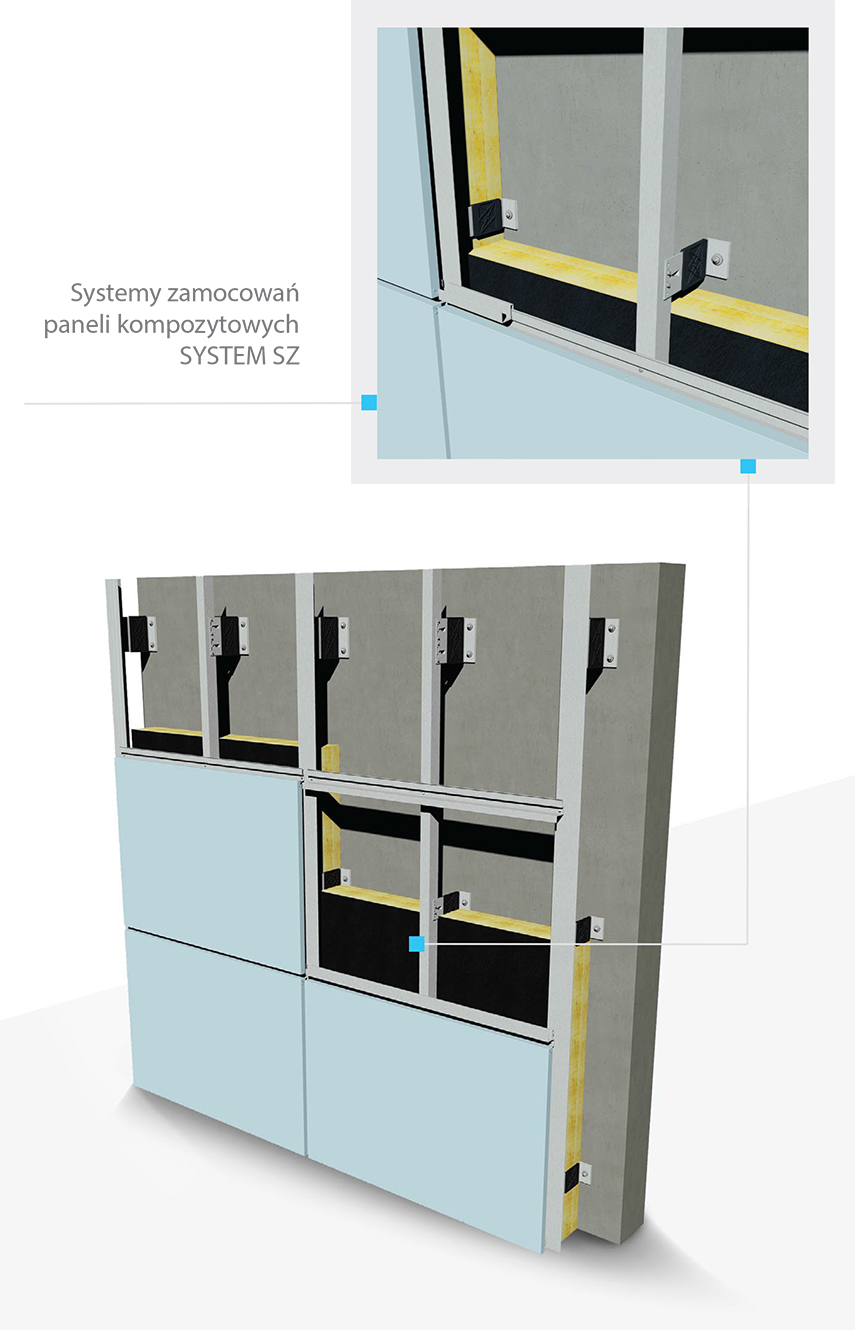

Mounting systems for composite panels:
SZ system is designed for horizontal panel layout. The ASP (S shaped) profile is attached to the bottom of the cassette while The AZP (Z shaped) profile is attached to its top part. When The cas-settes are installed the profiles interlock.
Each AZP profile is additionally screwed to vertical profiles. The ASTP profile is used at the bottom of the facade to install the first line of ACP cassettes. Stainless steel AC clips secure the connection between The SZ (ASP-AZP) profiles.
.
ARTRYS SZ- SYSTEM PROFILES - ASP

Material: |
---|
Aluminum EN AW 6060 T6/T66 |
DATA FOR PROFILE ASP: | |
---|---|
Jx = 3,18 cm4 | Jy = 4,53 cm4 |
Jx1 = 2,17 cm4 | Jy1 = 5,53 cm4 |
Wx = 1,57 cm³ | Wy = 2,23 cm³ |
Wx1 = 0,97 cm³ | Wy1 = 2,09 cm³ |
A = 2,22 cm² | Weight = 0,60 kg/m |

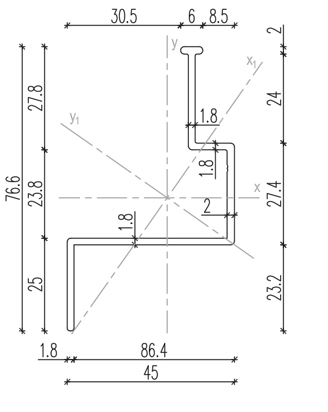

ARTRYS SZ- SYSTEM PROFILES- AZP

Material: |
---|
Aluminum EN AW 6060 T6/T66 |
DATA FOR PROFILE AZP: | |
---|---|
Jx = 9,45 cm4 | Jy = 6,28 cm4 |
Jx1 = 3,06 cm4 | Jy1 = 12,67 cm4 |
Wx = 2,32 cm³ | Wy = 2,34 cm³ |
Wx1 = 1,41 cm³ | Wy1 = 2,85 cm³ |
A = 2,46 cm² | Masa = 0,67 kg/m |

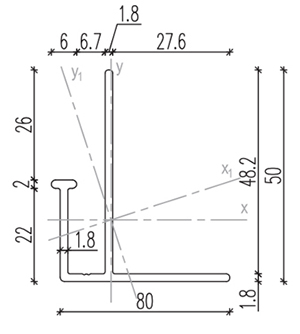

ARTRYS SZ- SYSTEM PROFILES - ASTP

Material: |
---|
Aluminum EN AW 6060 T6/T66 |
DATA FOR PROFILE ASTP: | |
---|---|
Jx = 4,33 cm4 | Jy = 1,99 cm4 |
Jx1 = 4,59 cm4 | Jy1 = 1,73 cm4 |
Wx = 1,22 cm³ | Wy = 0,71 cm³ |
Wx1 = 1,35 cm³ | Wy1 = 0,77 cm³ |
A = 2,06 cm² | Masa = 0,56 kg/m |

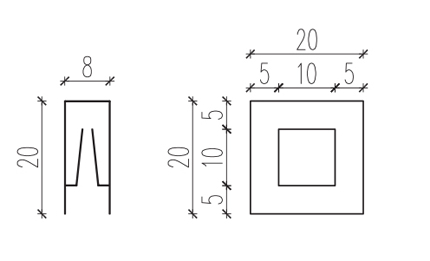

ARTRYS CLIP - AC

Material: |
---|
Stainless steel 1.4301/2B (304) |

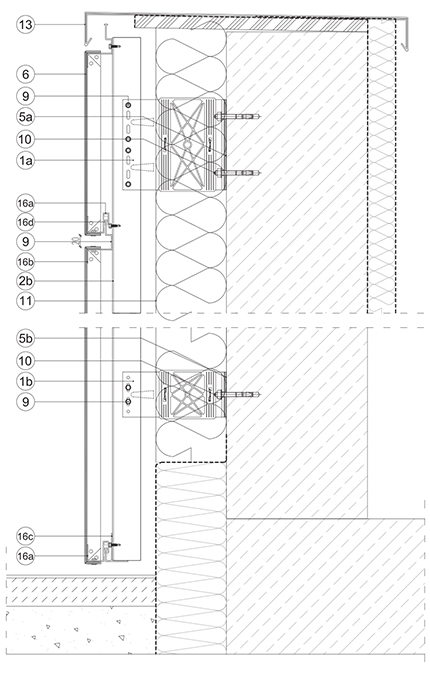

CONNECTION WITH THE ATTIC AND GROUND

1a. | ARTRYS BRACKET LARGE PASSIVE - BLP X | |
1b. | ARTRYS BRACKET MEDIUM PASSIVE - BMP X | |
2b. | ARTRYS L PROFILE - ALP 45/55/2 | |
5a. | ISOLATOR LARGE - PVC L | |
5b. | ISOLATOR MEDIUM - PVC M | |
6 | CLADDING PANEL | |
9 | SELF-DRILLING SCREW | |
10 | ANCHOR | |
11 | MINERAL WOOL WITH VEIL | |
15 | SELF-TURNING SCREW | |
16a. | ARTRYS SZ-SYSTEM PROFILES - ASP | |
16b. | ARTRYS SZ-SYSTEM PROFILES - AZP | |
16c. | ARTRYS SZ-SYSTEM PROFILES - ASTP | |
16d. | ARTRYS CLIP - AC |

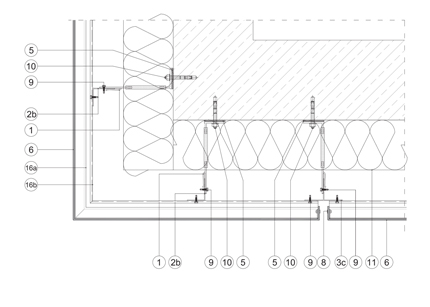

EXTERNAL CORNER CONNECTION

1 | ARTRYS BRACKET PASSIVE - BLP X/BMP X | |
2b. | ARTRYS L PROFILE - ALP 45/55/2 | |
3c. | ARTRYS T PROFILE - ATP 105/55/2 | |
5 | ISOLATOR - PVC L / PVC M | |
6 | CLADDING PANEL | |
8 | RIVET | |
9 | SELF-DRILLING SCREW | |
10 | ANCHOR | |
11 | MINERAL WOOL WITH VEIL | |
15 | SELF-TURNING SCREW | |
16a. | ARTRYS SZ-SYSTEM PROFILES - ASP | |
16b. | ARTRYS SZ-SYSTEM PROFILES - AZP |
WINDOW CONNECTION - VERTICAL GLYPH

1a. | ARTRYS BRACKET LARGE PASSIVE - BLP X | |
1b. | ARTRYS BRACKET MEDIUM PASSIVE - BMP X | |
2b. | ARTRYS L PROFILE - ALP 45/55/2 | |
5a. | ISOLATOR LARGE - PVC L | |
5b. | ISOLATOR MEDIUM - PVC M | |
6 | CLADDING PANEL | |
9 | SELF-DRILLING SCREW | |
10 | ANCHOR | |
11 | MINERAL WOOL WITH VEIL | |
14 | WINDOWSILL | |
15 | SELF-TURNING SCREW | |
16a. | ARTRYS SZ-SYSTEM PROFILES - ASP | |
16b. | ARTRYS SZ-SYSTEM PROFILES - AZP | |
16d. | ARTRYS CLIP - AC | |
17a. | ARTRYS WINDOW PROFILE - AWP1 |
