Profile Omega AOP
Special profiles:

AOP top-hat profiles are used for the shortest outreaches. The only way to adjust them is by installing washers underneath. They can be used for interiors where additional insulation is not necessary or exteriors if insulation is hidden somewhere inside the wall.

ARTRYS OMEGA PROFILES - AOP A

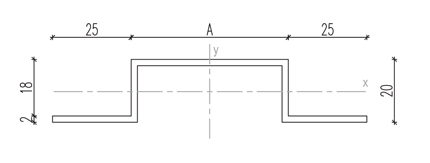

DATA FOR PROFILE APO50
Jx = 1,83 cm4 Jy = 20,82 cm4
Wx = 1,78 cm³ Wy = 4,16 cm³
A = 2,72 cm²Weight = 0,74 kg/m
NAME OF PROFILESA [mm]
ARTRYS OMEGA - PROFILES AOP 5050
ARTRYS OMEGA - PROFILES AOP 100100
Material:
Aluminum EN AW 6060 T6/T66
DATA FOR PROFILE APO100
Jx = 2,46 cm4 Jy = 73,54 cm4
Wx = 2,01 cm³ Wy = 9,81 cm³
A = 3,72 cm²Weight = 1,01 kg/m

UNHEATED FACADES - CONCEALED FIXING

2b.ARTRYS L PROFILE - ALP 45/55/2
4a.ARTRYS OMEGA PROFILES - AOP 50
4b.ARTRYS OMEGA PROFILES - AOP 100
6CLADDING PANEL
7ADHESIVE + TAPE
10ANCHOR

UNHEATED FACADES- - VISIBLE FIXING

2b.ARTRYS L PROFILES - ALP 45/55/2
4a.ARTRYS OMEGA PROFILES - AOP 50
4b.ARTRYS OMEGA PROFILES - AOP 100
6CLADDING PANEL
8RIVET
10ANCHOR
