Mounting Systems


Aluminum systems
Fastening systems for ventilated facades:

Aluminium brackets are our standard solution. They are easy to install, highly resistant to corrosion and can be formatted on the construction site. In order to reduce thermal bridges and avoid direct connection with the wall they should be used together with our PVC washers. Both sizes (BL and BM) come in various lengths from 60 to 240 mm (in 20 mm increments).

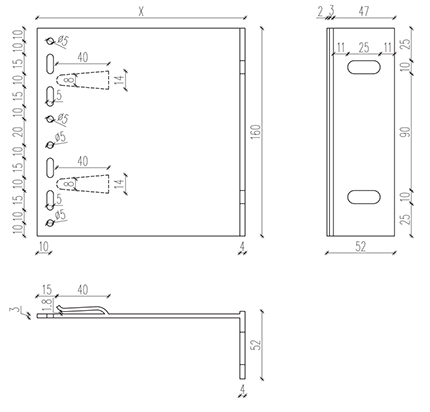

ARTRYS BRACKET LARGE NEW - BLN X

NAME OF CONSOLEX [mm]
ARTRYS Bracket Large New - BLN 240240
ARTRYS Bracket Large New - BLN 220220
ARTRYS Bracket Large New - BLN 200200
ARTRYS Bracket Large New - BLN 180180
ARTRYS Bracket Large New - BLN 160160
ARTRYS Bracket Large New - BLN 140140
ARTRYS Bracket Large New - BLN 120120
ARTRYS Bracket Large New - BLN 100100
ARTRYS Bracket Large New - BLN 8080
ARTRYS Bracket Large New - BLN 6060
Material:
Aluminum EN AW 6060 T6

ARTRYS BRACKET MEDIUM NEW - BMN X

NAME OF CONSOLEX [mm]
ARTRYS Bracket Medium New - BMN 240240
ARTRYS Bracket Medium New - BMN 220220
ARTRYS Bracket Medium New - BMN 200200
ARTRYS Bracket Medium New - BMN 180180
ARTRYS Bracket Medium New - BMN 160160
ARTRYS Bracket Medium New - BMN 140140
ARTRYS Bracket Medium New - BMN 120120
ARTRYS Bracket Medium New - BMN 100100
ARTRYS Bracket Medium New - BMN 8080
ARTRYS Bracket Medium New - BMN 6060
Material:
Aluminum EN AW 6060 T6
