Artrys construction systems are a wide, complete range of special products, designed with changes in mind. The base of the support system, the console and the aluminum profile, the service status in the upper corner of the spacing (e.g. 30 mm space at the connection of the profiles). Consoles are offered in three variants: aluminum, stainless steel, aluminum-plastic (i.e. passive).

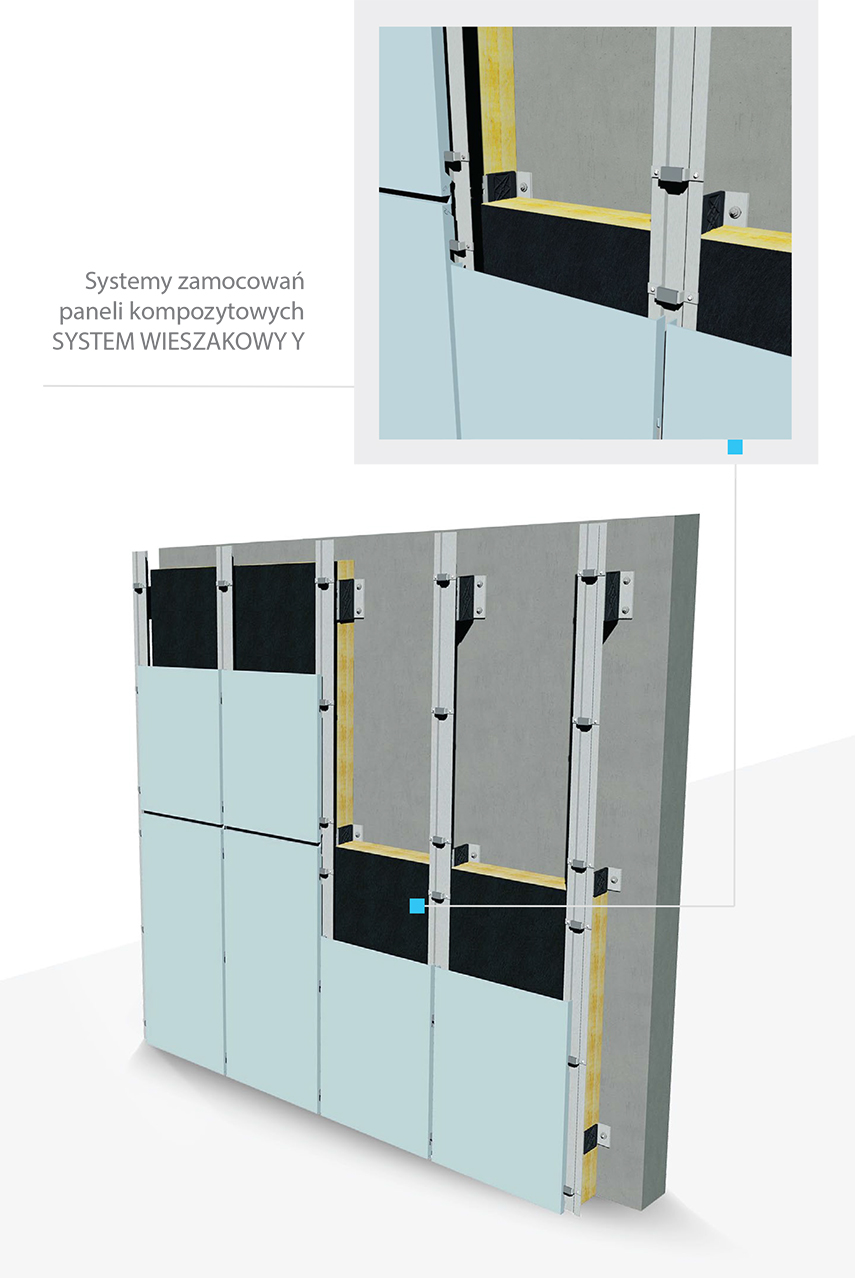

The Y Hangar Fixing System
Artrys Y hanging systems can be used for both vertical and horizontal panel layouts. The AY hanger is attached to the AYP profile. The AY is used to hang the ACP cassettes and fits neatly in the cut-outs on their sides.
In order to stiffen the connection and absorb any shocks a rubber cap is inserted at the AY hangers - the caps are available in three colours.

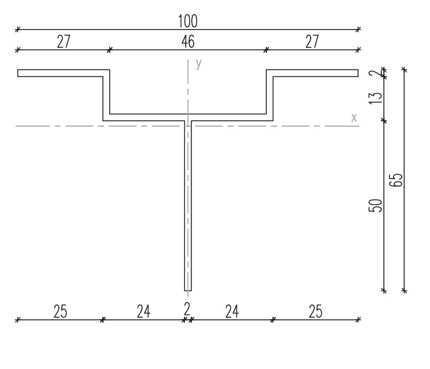

ARTRYS Y PROFILE - AYP
Material:
Aluminum EN AW 6060 T6/T66
DATA FOR PROFILE AYP:
Jx = 10,67 cm4
Jy = 19,67 cm4
Wx = 2,20 cm³
Wy = 3,93 cm³
A = 3,52 cm²
Weight = 0,96 kg/m

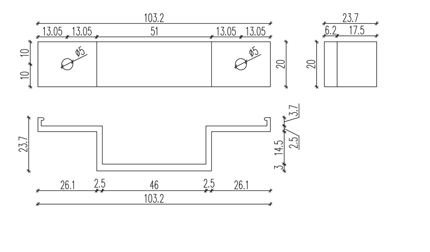

ARTRYS HOLDER - AY
Material:
Aluminum EN AW 6060 T6/T66

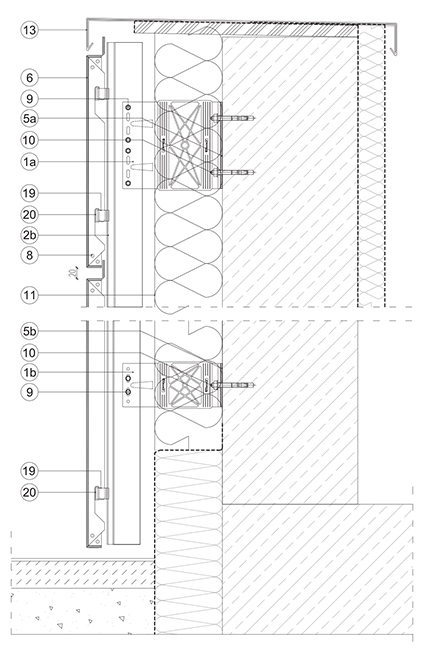

CONNECTION WITH THE ATTIC AND GROUND
1a.
ARTRYS BRACKET LARGE PASSIVE - BLP X
1b.
ARTRYS BRACKET MEDIUM PASSIVE - BMP X
2b.
ARTRYS L PROFILE - ALP 45/55/2
5a.
ISOLATOR LARGE - PVC L
5b.
ISOLATOR MEDIUM - PVC M
6
CLADDING PANEL
8
RIVET
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
13
FLASHING
18
ARTRYS Y PROFILES - AYP
19
ARTRYS HOLDER - AY
20
ARTRYS GUM

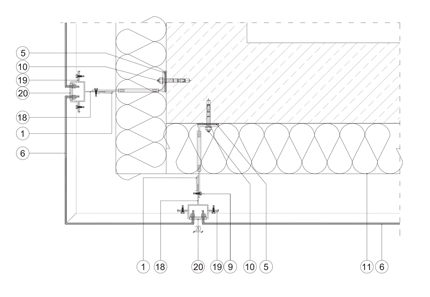

EXTERNAL CORNER CONNECTION
1
ARTRYS BRACKET PASSIVE - BLP X/BMP X
5
ISOLATOR - PVC L / PVC M
6
CLADDING PANEL
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
18
ARTRYS Y PROFILES - AYP
19
ARTRYS HOLDER - AY
20
ARTRYS GUM

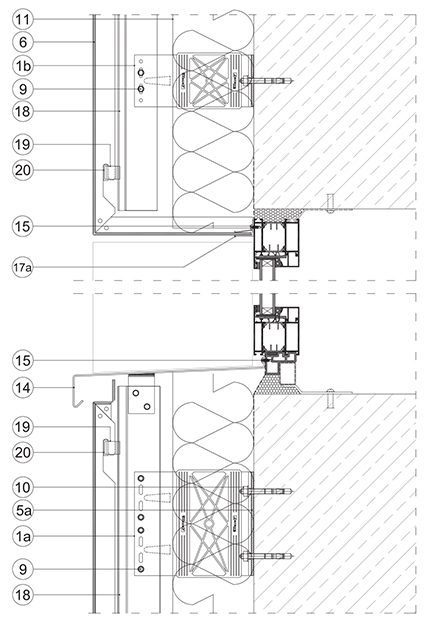

WINDOW CONNECTION - HORZONTAL GLYPH, WINDOWSILL
1a.
ARTRYS BRACKET LARGE PASSIVE - BLP X
1b.
ARTRYS BRACKET MEDIUM PASSIVE - BMP X
5a.
ISOLATOR LARGE - PVC L
5b.
ISOLATOR MEDIUM - PVC M
6
CLADDING PANEL
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
14
WINDOWSILL
15
SELF-TURNING SCREW
17a.
ARTRYS WINDOW PROFILES - AWP1
18
ARTRYS Y PROFILES - AYP
19
ARTRYS HOLDER - AY
20
ARTRYS GUM

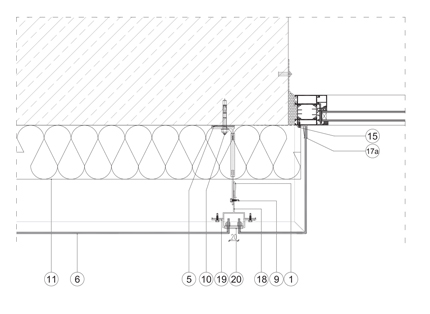

WINDOW CONNECTION- - VERTICAL GLYPH
1
ARTRYS BRACKET PASSIVE - BLP X/BMP X
5
ISOLATOR - PVC L / PVC M
6
CLADDING PANEL
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
15
SELF-TURNING SCREW
17a.
ARTRYS WINDOW PROFILES - AWP1
18
ARTRYS Y PROFILES - AYP
19
ARTRYS HOLDER - AY
20
ARTRYS GUM
