The ALS50 aluminium louvers system helps in protecting areas exposed to the sun without disturb-ing the airflow. The AGP50 mounting profile enables fast and easy installation of ALP50 aluminium louvers by simply clicking them in. Both elements can be coated a in desired colour.

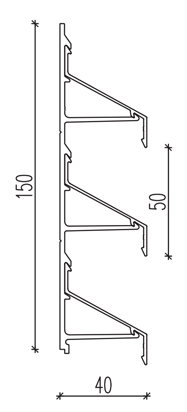

ARTRYS LOUVRE SYSTEM - ALS50
Data for the ALS50 shutter system
Physical cross-section
65%
Optical cross-section
72%
Standard width of the AGP50 element
30 mm
The width of the AGP50 element on the joint
60 mm
The maximum span between slat supports
1,2 m
The maximum length of the ALP50
6,0 m
The maximum length of the AGP50
3,0 m
Material
ALUMINUM EN AW 6060 T6/T66

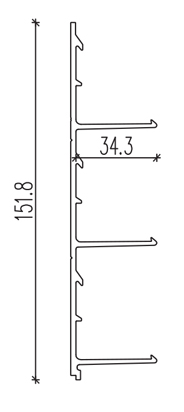

ARTRYS COMB PROFILE - AGP50
Material
ALUMINUM EN AW 6060 T6/T66

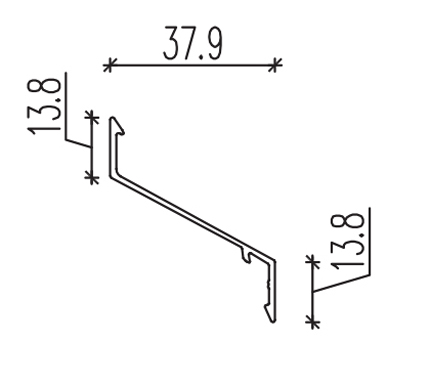

ARTRYS LAMELA PROFILE - ALP50
Material
ALUMINUM EN AW 6060 T6/T66
FASTENIG SYSTEM FOR ALUMINUM BLINDS - ALS50
1a.
ARTRYS BRACKET LARGE PASSIVE - BLP X
1b.
ARTRYS BRACKET MEDIUM PASSIVE - BMP X
3a.
ARTRYS L PROFILE - ALP 45/55/2
5a.
ISOLATOR LARGE - PVC L
5b.
ISOLATOR MEDIUM - PVC M
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
15.
SELF-TURNING SCREW
21.
ARTRYS COMB PROFILE - AGP50
22.
ARTRYS LAMELA PROFILE - ALP50
